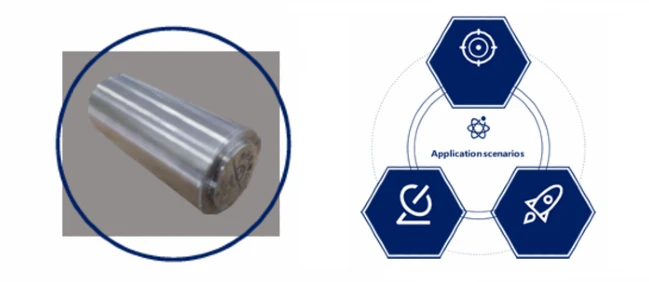

SG-01 – Single-Axis Low-Precision Gyroscope
Product Features
- Compact and lightweight design
- No moving parts – maintenance-free
- High reliability and long service life
Model Overview
| Gyroscope model | Measurement | Weight | Installation dimension |
|---|---|---|---|
| SG-01 | Φ36mm × 83.6mm | ≤120g | Refer to the specific requirements |
Technical Specifications
| Parameter | Unit | Metric |
|---|---|---|
| Zero-bias stability (10s, 1σ, const. temp) | °/h | ≤1 |
| Zero-bias repeatability (1σ, const. temp) | °/h | ≤1 |
| Random walk coefficient | °/√h | ≤0.1 |
| Scale factor nonlinearity | ppm | ≤100 |
| Scale factor asymmetry | ppm | ≤100 |
| Scale factor repeatability | ppm | ≤200 |
| Threshold | °/h | ≤0.1 |
| Dynamic range | °/s | ≤500 |
| Bandwidth | Hz | ≥500 |

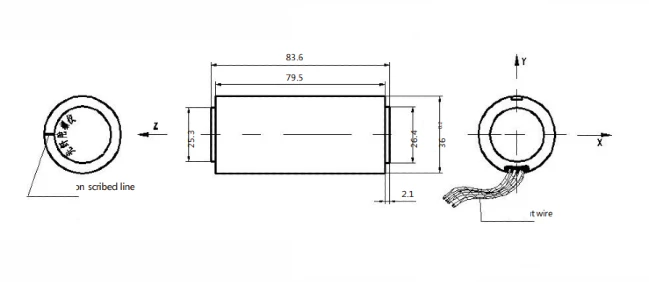

| Overall dimensions | mm | Φ36 × 83.6 |
| Weight | g | ≤120 |
| Operating temperature | °C | -45 to +60 |
| Output mode | – | RS422 serial output |
| Power requirements | – | ±5V, ≤2W / ≤1W |
