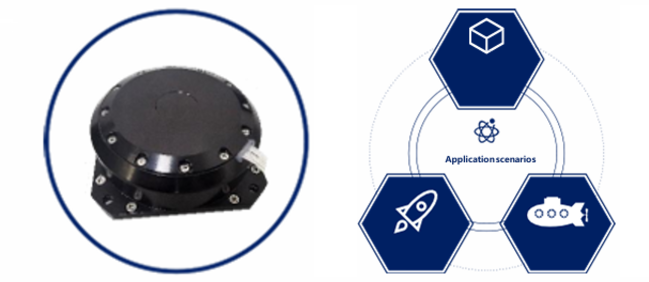

SG-05 Series Single-Axis Low-Precision Gyroscopes

SG-05 Series Single-Axis High-Precision Gyroscopes

Product Features

  • High precision
  • Without any moving parts
  • High reliability and long service life

Model Overview

Gyroscope model Measurement Weight Installation dimension
SG-05-A ≤98mm × 98mm × 36mm ≤530g 80mm × 80mm
SG-05-B ≤98mm × 98mm × 36mm ≤600g 80mm × 80mm

Technical Specifications

Name and Parameters Unit SG-05-A / SG-05-B
Zero-bias stability (10s, 1σ, const. temp)°/h≤0.005 / ≤0.003
Zero-bias repeatability (1σ, const. temp)°/h≤0.005 / ≤0.003
Random walk coefficient°/√h≤0.001 / ≤0.0006
Scale factor nonlinearityppm≤10 / ≤5
Scale factor asymmetryppm≤10 / ≤5
Scale factor repeatabilityppm≤20 / ≤10
Threshold°/h≤0.001
Dynamic range°/s≤150
BandwidthHz≥200 / ≥100
Overall dimensionsmm≤98×98×36
Weightg≤530 / ≤600
Operating temperature°C-45 ~ +60
Output mode–RS422 serial port output
Power supply requirement–±5V; +5V ≤2W, -5V ≤1W
