SG-09 Series Single-Axis Low-Precision Gyroscopes

SG-09 series three-axis integrated low-precision gyroscope

Product features

  • Small in size and light in weight.
  • Without any moving parts.
  • High reliability and long service life.

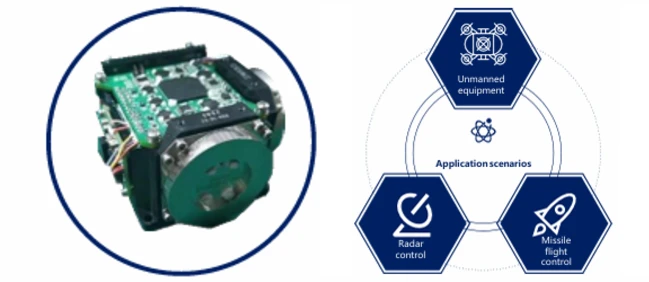

Application scenarios
Gyroscope image

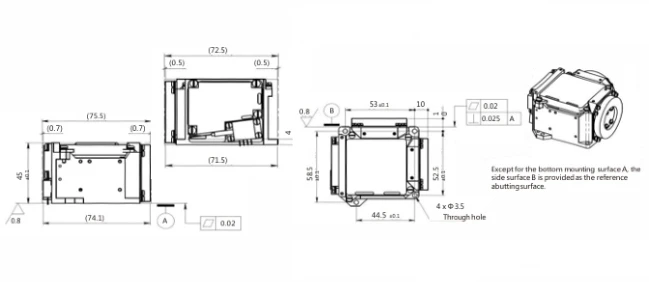

Overall dimensions

Gyroscope model Measurement Weight Installation dimension
SG-09-A ≤76mm×73mm×46mm ≤310g Refer to the specific requireme nts.
SG-09-B ≤76mm×73mm×46mm ≤350g Refer to the specific requirem ents.

Technical indicators

Name and parameters Unit SG-09-A SG-09-B
Zero – bias stability (10s, 1σ, constant temperature)°/h≤0.3≤0.1
Zero – bias repeatability (1σ, constant temperature)°/h≤0.3≤0.1
Random walk coefficient°/h1/2≤0.05≤0.01
Scale factor nonlinearityppm≤50≤50
Scale factor asymmetryppm≤50≤50
Scale factor repeatabilityppm≤100≤100
Threshold value°/h≤0.1≤0.1
Dynamic range°/s≤500≤500
BandwidthHz≥500≥500
Overall dimension / Outline dimensionmm≤76×73×46≤76×73×46
Weightg≤310≤350
Operating temperature°C-45 ~ +60-45 ~ +60
Output modeRS422 serial port outputRS422 serial port output
Power supply requirementIt is powered by ±5V. The power requirement for +5V should not exceed 4W, and that for -5V should not exceed 2W.Same as SG-09-A
