SG-10 Series Single-Axis Low-Precision Gyroscopes

SG-10 three-axis integrated low-precision gyroscope

Product features

  • Small in size and light in weight.
  • Without any moving parts.
  • High reliability and long service life.

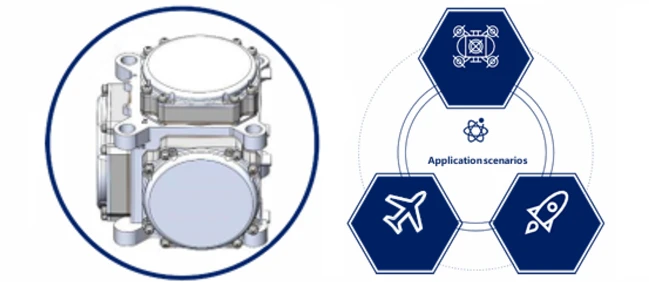

Application scenarios
Gyroscope image

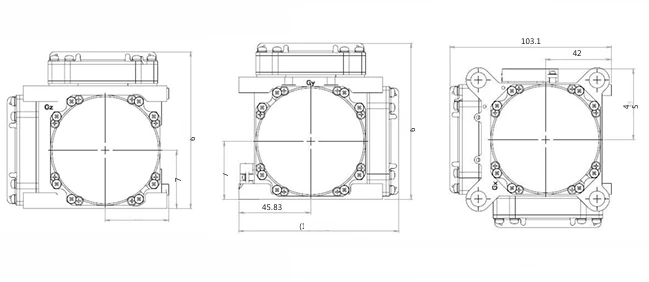

Overall dimensions

Gyroscope model Measurement Weight Installation dimension
SG-10 ≤104mm×102mm×100mm ≤1.3Kg Refer to the specific requirements.

Technical indicators

Name and parameters Unit Metric
Zero – bias stability (10s, 1σ, constant temperature)°/h≤0.02
Zero – bias repeatability (1σ, constant temperature)°/h≤0.02
Random walk coefficient°/h1/2≤0.005
Scale factor nonlinearityppm≤30
Scale factor asymmetryppm≤30
Scale factor repeatabilityppm≤50
Threshold value°/h≤0.005
Dynamic range°/s≤400
BandwidthHz≥400
Overall dimension / Outline dimensionmm≤104×102×100
WeightKg≤1.3
Operating temperature°C-45 ~ +60
Output modeRS422 serial port output
Power supply requirementIt is powered by ±5V. The power requirement for +5V should not exceed 4W, and that for -5V should not exceed 2W.
