SG-15 Fiber optic gyro continuous inclinometer series
Product features
- With the fiber – optic gyroscope as the core sensor, it can obtain the well – bore position and attitude information in real – time.
- It has the advantages of being resistant to magnetic interference, high – temperature resistant and vibration – resistant.

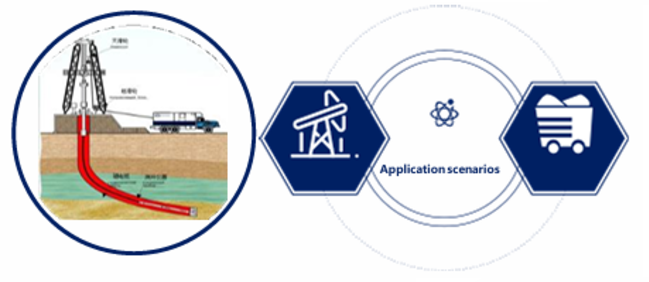

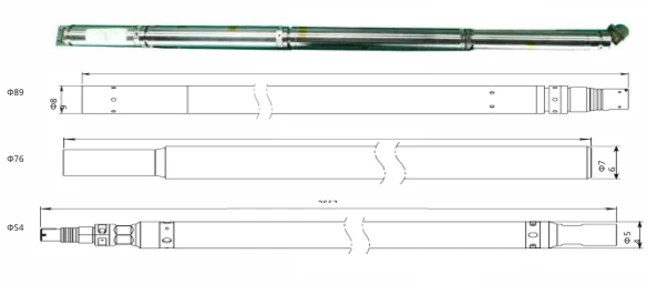

Overall dimensions
| Inclinometer model | Measurement | Weight | Installation dimension |
|---|---|---|---|
| SG-15-A | Φ89mm×2702mm | ≤43Kg | With a pressure-resistant shell |
| SG-15-B | Φ76mm×2300mm | ≤60Kg | With a pressure-resistant shell and a vacuum flask |
| SG-15-C | Φ54mm×2657mm | ≤36Kg | With a pressure-resistant shell |
Technical indicators
| Name and parameters | Unit | Metric |
|---|---|---|
| Azimuth angle (1σ) : 0° ~ 360° | ° | ±1.0 (inclination angle ≥ 3°) ±15 (inclination angle < 3°) |
| Tool face angle (1σ) : 0° ~ 360° | ° | ±0.1 (inclination angle ≥ 3°) ±0.3 (inclination angle < 3°) |
| Inclination angle (1σ): 0° ~ 180° | ° | ±0.1 |
| Operating temperature (with vacuum flask) | °C | 0 ~ 150 |
| Logging speed | m/h | ≤4000 |
| Azimuth drift | °/h | 1 |
| Operating pressure | Mpa | ≤130 |
| Continuous working time | h | 4 |
| Overall dimensions (with pressure-resistant shell) | mm | Φ89 (FIW01) Φ76 (FIW02) Φ54 (FIW04) |
| Weight | Kg | ≤43 (FIW01) ≤60 (FIW02) ≤36 (FIW04) |
| Output mode | RS422 serial port output | |
| Power supply requirements | AC200V ±10% |
